樑式荷重元係常用的地磅荷重元 , 其高敏感剪力感應結構及完
全密封式保護 , 使荷重感應達到最高之精度與敏感度 , 特別適
用於地磅 , 吊秤 , 重量 , 力量量測及自動控制上 , 具以下之特點 :

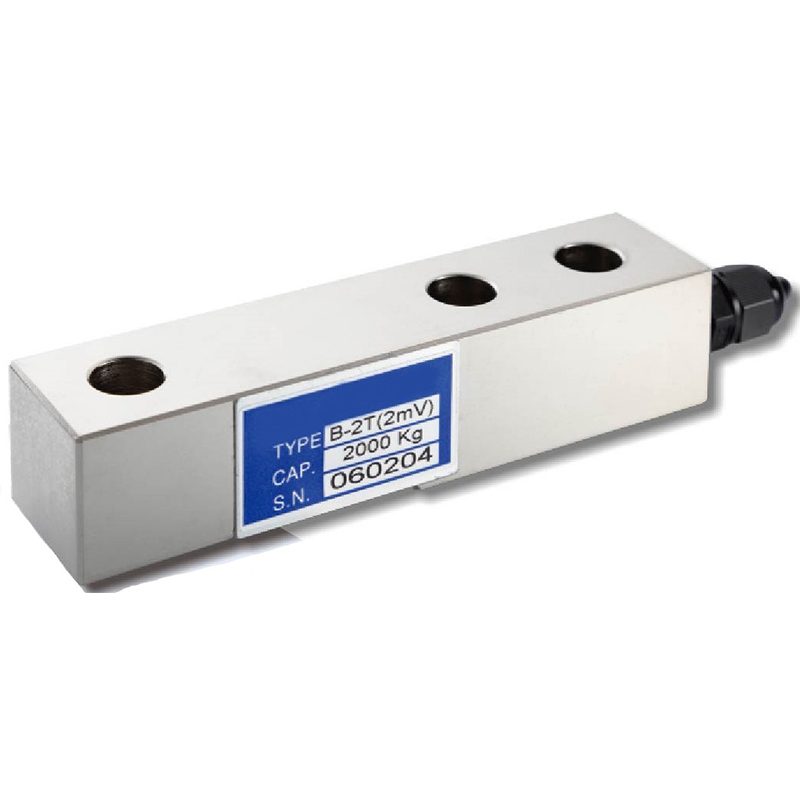

This is a shear - beam type load cell. Its hermetically sealed
and high sensitivity make the load cell be ideal for using in
highl structure , it is very accuracy truck scales. weight and
automatic weighing machines.

特點 Features

高精密 High accuracy

溫度補償 Thermally compensated

密封保護 Hermetically sealed

適用大型平台 Suitable for large platforms

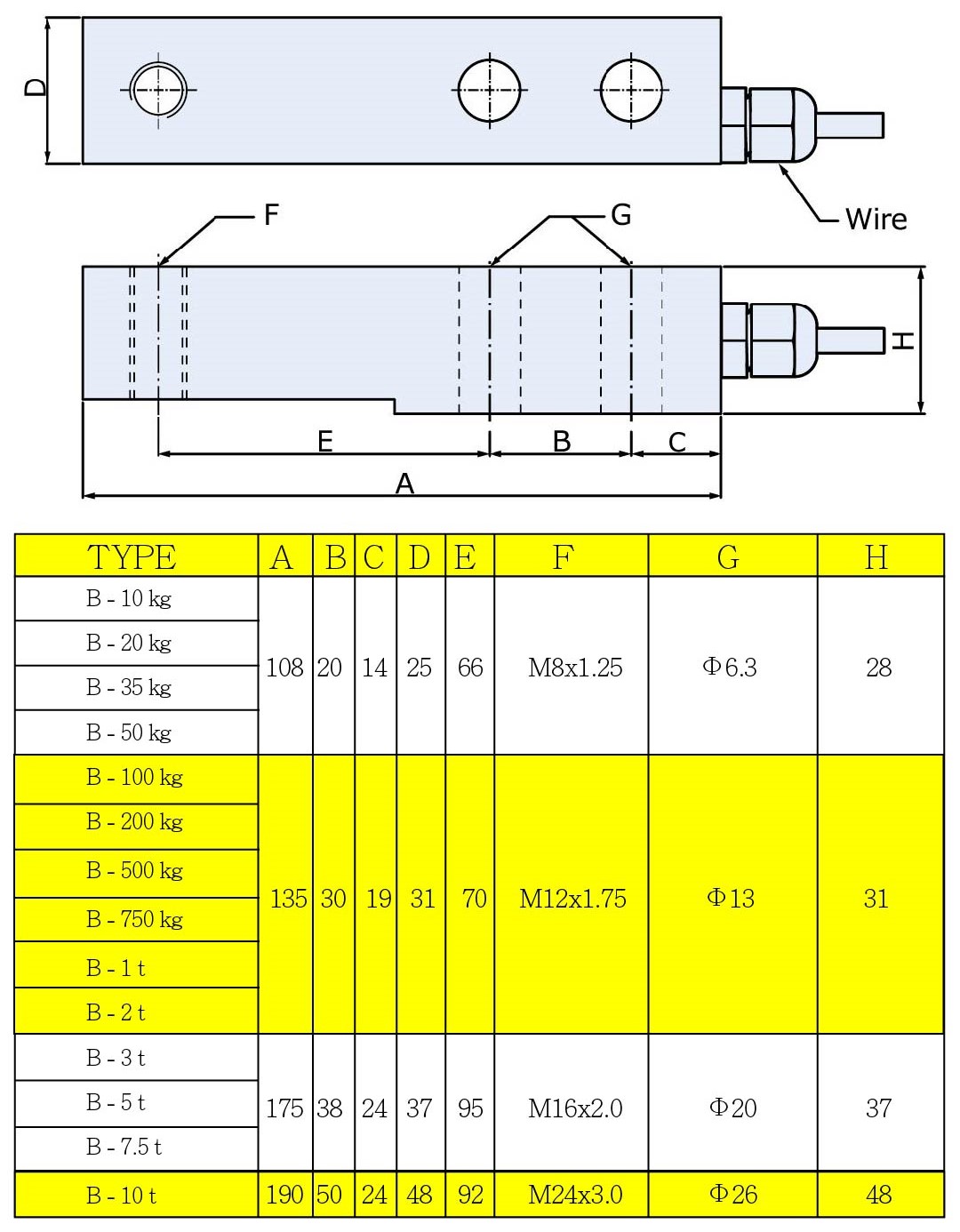

B - 10 , 20 , 35g , 50 , 100 , 200 , 500 , 750 kg

1 , 2 , 3 , 5 , 7.5 , 10 t
