ELECTRICAL SPEC 電器規格

Detection System 檢測系統

lncremental 增量型

Output Wave 輸出波形

Square Wave 方波

Standard Number of  Pulse Per Revolution 解析

2,5,10,12,20,30,40,50,60,80,100,120,150,180,200,250,300,360,400,500, 512,600,720,800,900,1000,1024,1200,1250,1500,1800,2000,2048,2500

Output Phase 輸出相

ABZ phase

Electronics 電路特性

NPN Voltage 電壓型,NPN Open Collector 電流型,Push Pull 推挽式

Power Supply 供應電源

DC 5 ~ 26V

Current Consumption 消耗電流

≦60mA

Output Capacity 輸出容量

Sync. Current : 20mA , Residual Voltage : 0.5V or less

Max. Response 最大響應頻率

10K Hz ~ 100K Hz

Phase Different 相位差

A , B phase different 90°±45° (T/4±T/8) , Z phase T±T/2

Wave Form Rise / Fall 波形上下時間

2μs or less

Polanity 極性保護

Against Reverse Protection

MECHANICAL SPEC 機械規格

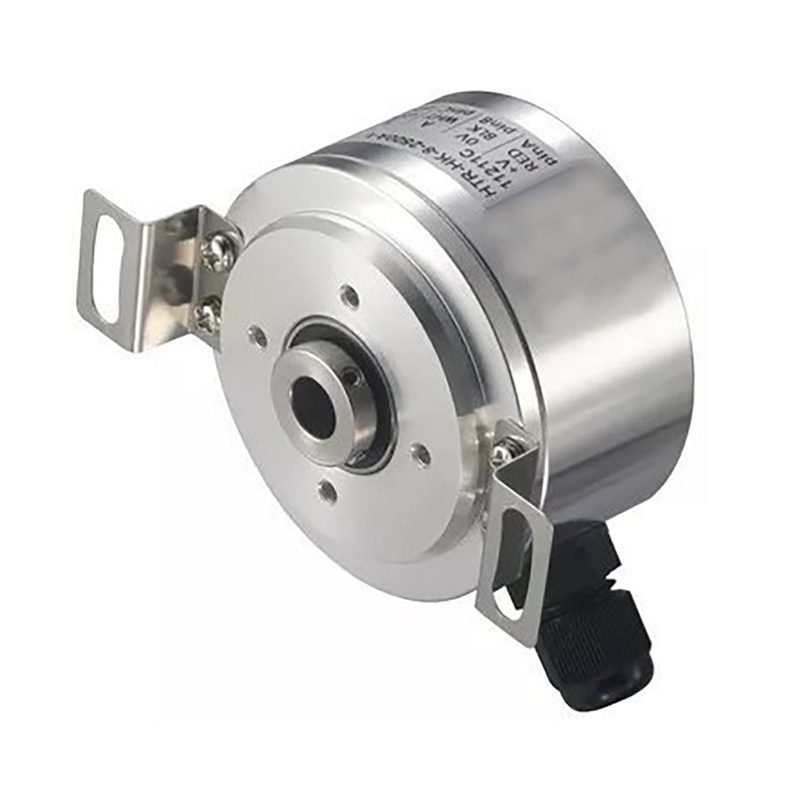

Hollow Shaft Diameter 軸徑

8 mm

Shaft Loading 軸荷重

Axial 軸向 : 1 kg , Radial 徑向 : 2 kg

Starting Torque(at 25°C) 起動轉矩

300 gf-cm or less

Max. Speed 最大機械容許轉速

2.000 rpm

Vibration 震動

10 - 55 Hz / 1.5 mm Vpp. 10 G( Max. )

Shock 衝擊

20 g per 11 ms

Weight 重量

≦250g

ENVIRONMENTAL SPEC 環境規格

Operating Temp./ Humidity 操作溫度/濕度

0°C ~ 60°C, RH 35 % ~ 90 % (No Condensation)

Storage Temp. 儲存溫度

-20°C ~ 70°C

Protection 保護等級

IP64 : Dust & dripping proof
