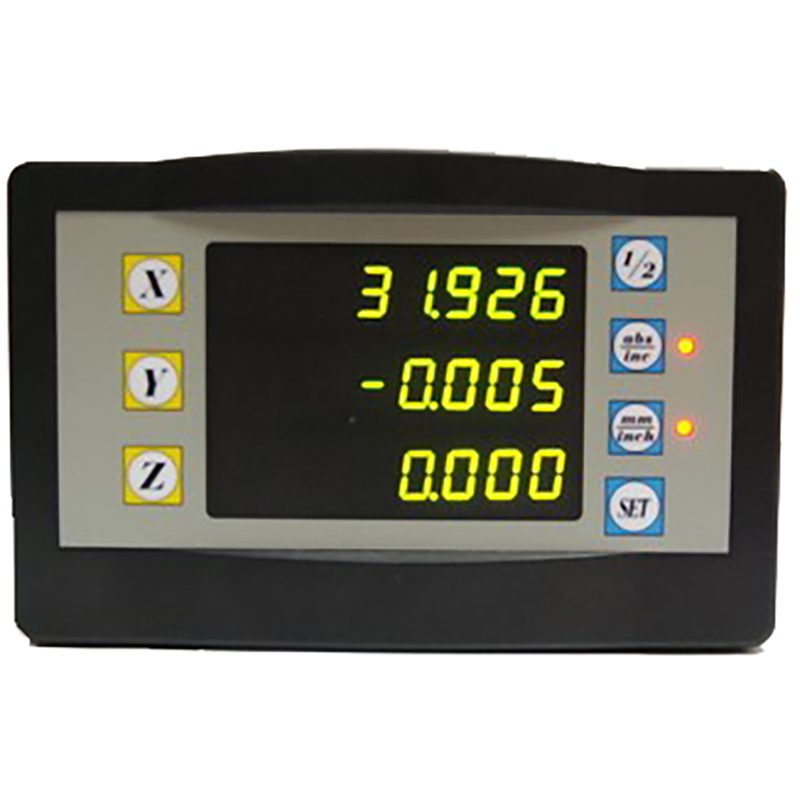

RD-17 三軸顯示器 3Axial Digital Readout Controller

自動控制零件項目 Part item

特點 Features

可搭配各廠牌光學尺及譯碼器.

Compatible with all of the linear scales or encoders.

可設定任意比例值.

With multi rate function (X1,X2,X4,X0.1,XN…..).

規格特性 Specifications Characteristics

Δ.機台背隙誤差補償設定.

Wuth backlash error compensation function.

Δ.響應頻率 response frequency.

min 60m (198.6 feet),max. at 1m Hz.

Δ.量化誤差 Quantizing error.

+/- 1 count.

Δ.輸入電源 lnput.

AC110V ~ 240V , 50 ~ 60Hz , 20VA.

Δ.輸出電源 output.

DC 5V for sensor.

Δ.溫度範圍 Temperature Range.

Working 0 ~ 40℃ / Storage - 20 ~ 70℃.

Δ.RS232傳輸.

RS232 signal output.

Δ.USB輸出接口可和電腦連接.

USB connector available.

Δ.度/分/秒顯示.

Degree / Minute / Second Display.

Δ.顯示 8 位數 LED

8 digitals LED display.

Δ.公英制顯示.

inch / mm available.

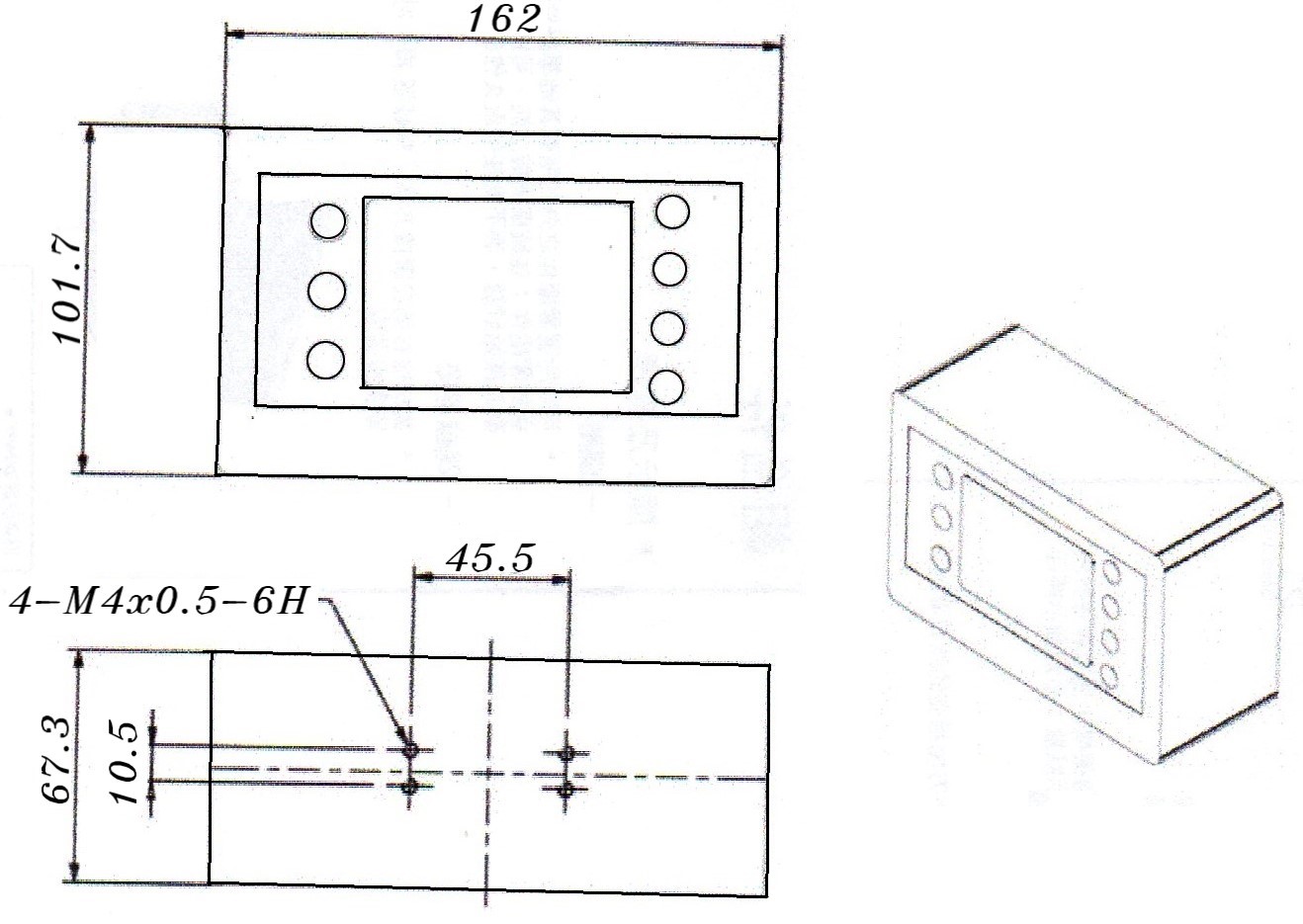

尺寸Dimension

DR_17-尺寸
