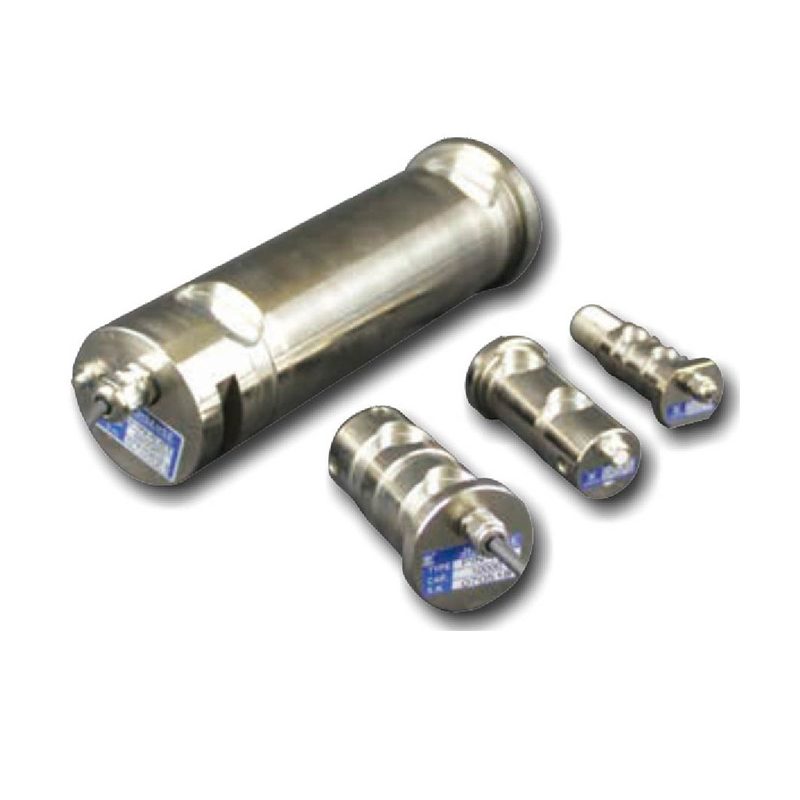

PIN荷重元係專為大型載重監測而設計之荷重元 , 使用雙剪力樑式結構 , 並以應變規為感測元件 , 變形量小 , 精度高 , 適用於吊掛 , 滑輪 , 纜線拉力之量測上 , 具以下之特點 :

The PIN load cell is a deaign for a heavy load measurement system. Using a double shear beam - type structure , and use the strain gauge for the sensor element. Its features are small deformation and high precision. It is ideally used to the hang pulley and pull measurement.

特點 Features

PIN型結構 PIN - type structure

雙向感應 Bidirectional measurement

剛性強 Rigid

安裝容易 Easy installation

天車專用 For Tiantian car

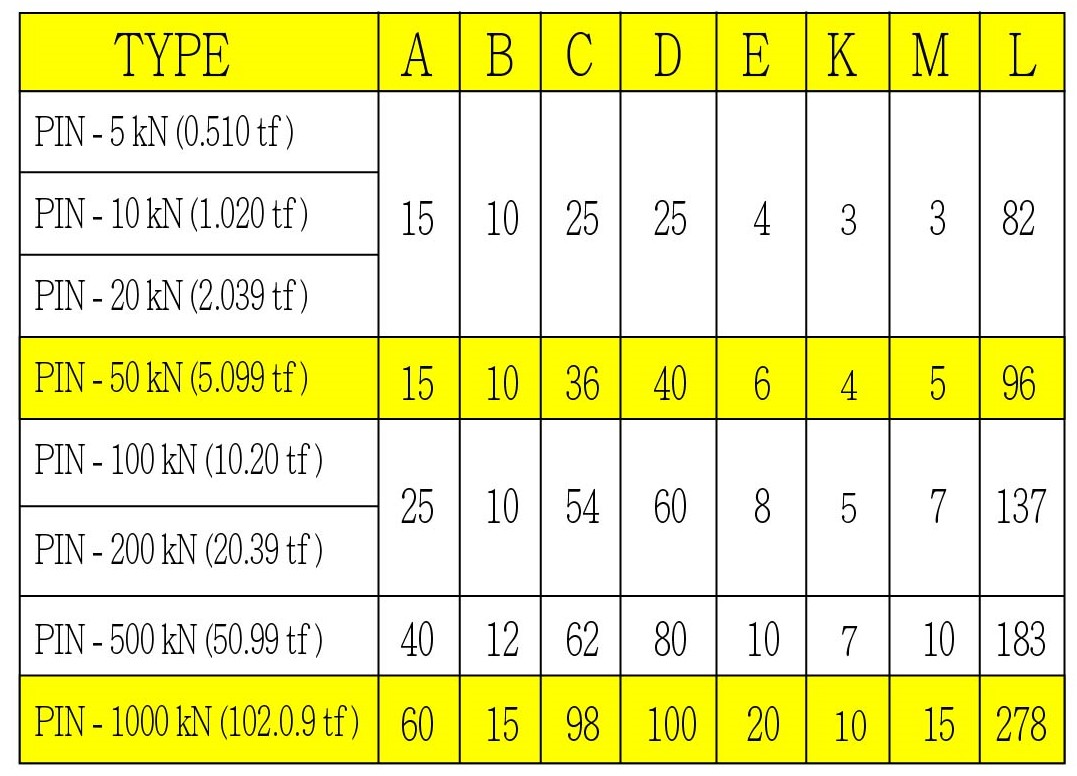

額定荷重 PIN - 5 , 10 , 20 , 50 , 100 , 200 , 500 , 1000 kN
