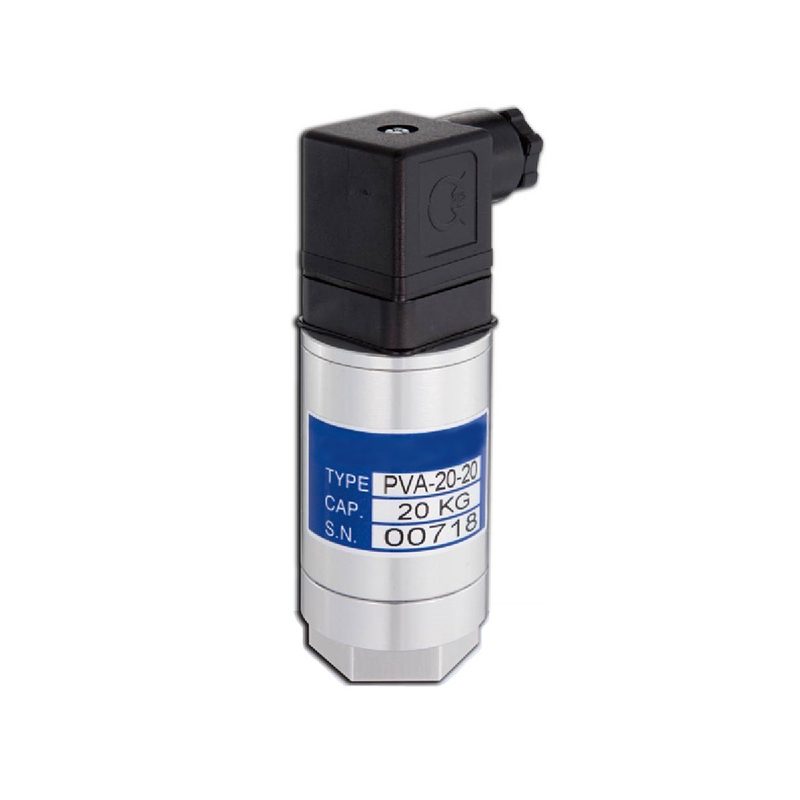

本壓力感測器係PVA型壓力感測器將放大線路埋於感測器內 , 可避免因導線所造成之誤差和干擾 , 有±5V , ±10V或 4 - 20 mA三種輸出可供選擇 , 本感測器經精確之溫度補償 , 感測結構並以密封方式保護 , 以達到最高之量測準確度 , 其量測準確度優於一般以矽晶做成之感測器具以下之特點 :

This pressure sensor is a upgraded version of PAV sensor and it is also a precision strain gage transducer. It uses the PV pressure sensor and hide the amplifier. It has ±5V , ±10V, 4 - 20 mA output to meet different applications.

特點 Features

密封保護 Hermetically Sealed

溫度變化補償 Thermally Cam Sated

高精度 High Accuracy

不銹鋼感應元件 Stainless Diaphragm

PVA - 10 , 20 , 35 , 50 , 100 , 200 , 350 , 500 , 750 , 1000 kg / cm²
