RT迴轉式扭力計 , 係專為旋轉中量測扭力而設計之感測器 , 採用剪力是轉軸應力量測結構 , 剛性強 , 結構穩固 , 轉速高 , 採用碳式傳遞量測訊號 , 雜訊低 , 一體式設計 , 簡潔美觀及堅固耐用具以下之特點 :

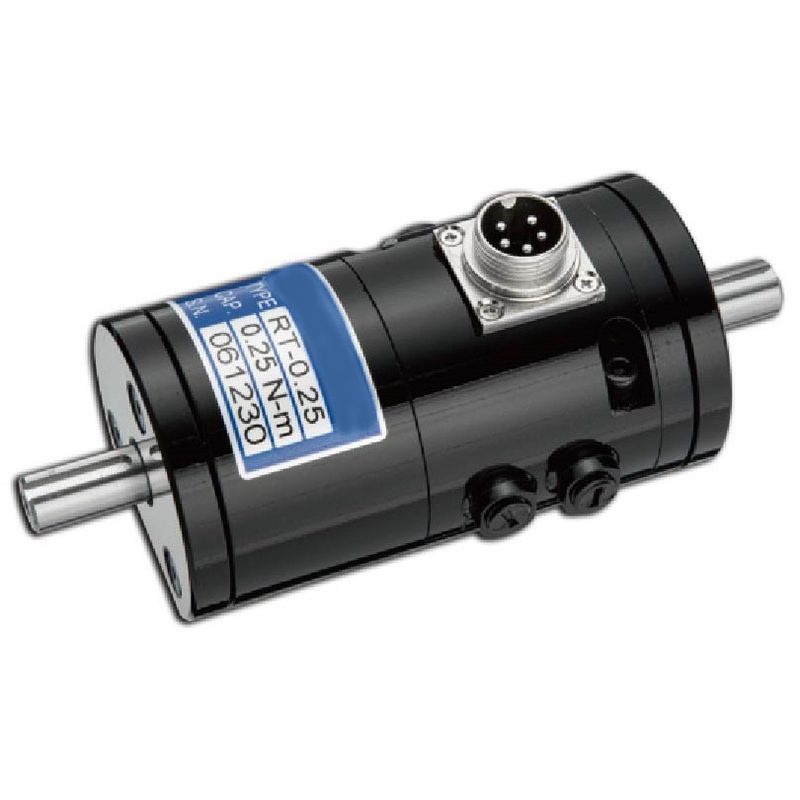

RT Rotory Torque sensor is a special design for measuring the torque on a continual rotation shaft. It constructs of a rigid spindle with shear strain detect sensor. The high-speed carbon brush picks up torque signal. Yet , that is low noise small , light and precise.

特點 Features

體積小 Small

高轉速 High Speed

剛性強 Rigid

低雜訊 Low Noise

碳刷式可旋轉量測 Carbon brush type rotating measurement

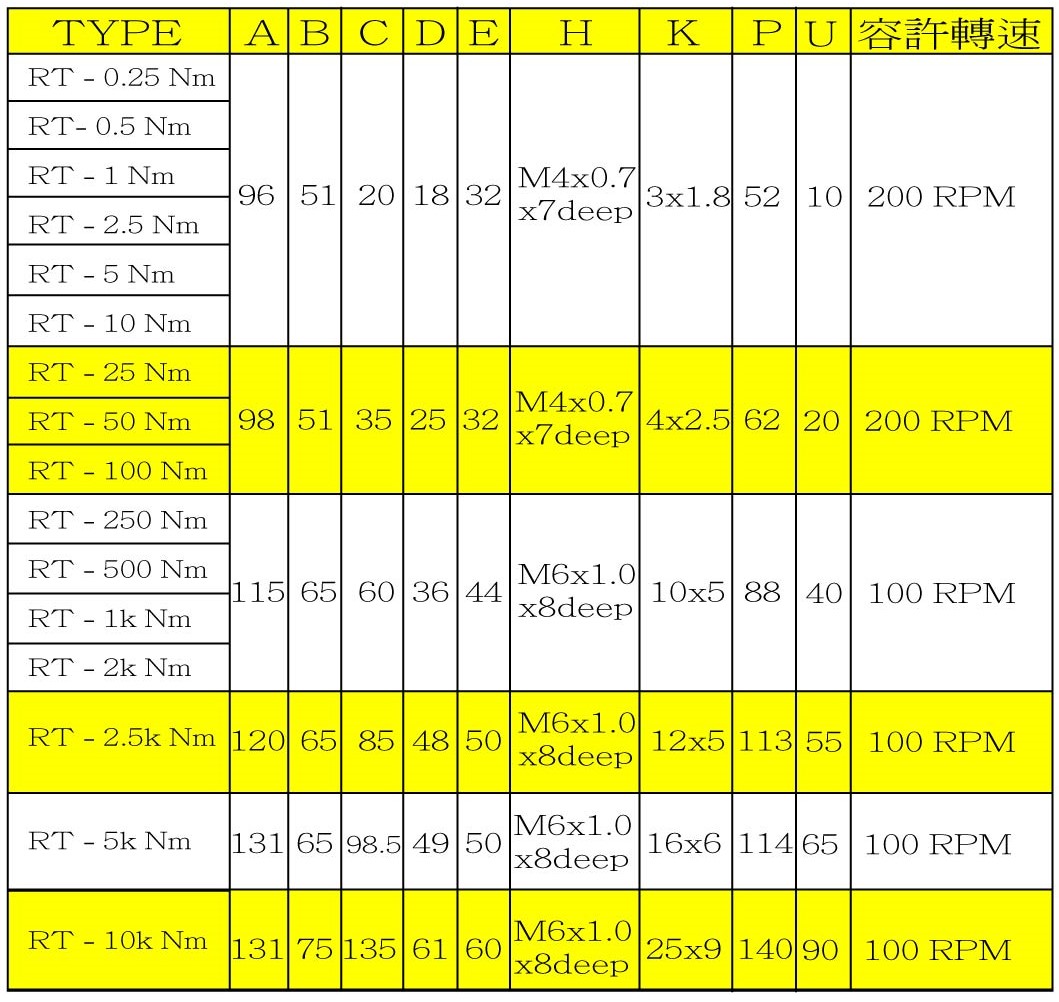

RT - 0.25 , 0.5 , 1 , 2.5 , 5 , 10 , 25 , 50 , 100 , 250 , 500 ,

1k , 2k , 2k , 2.5k , 5k , 10k Nm
